D1.3-800.00 Removable Gangway GA.pdf

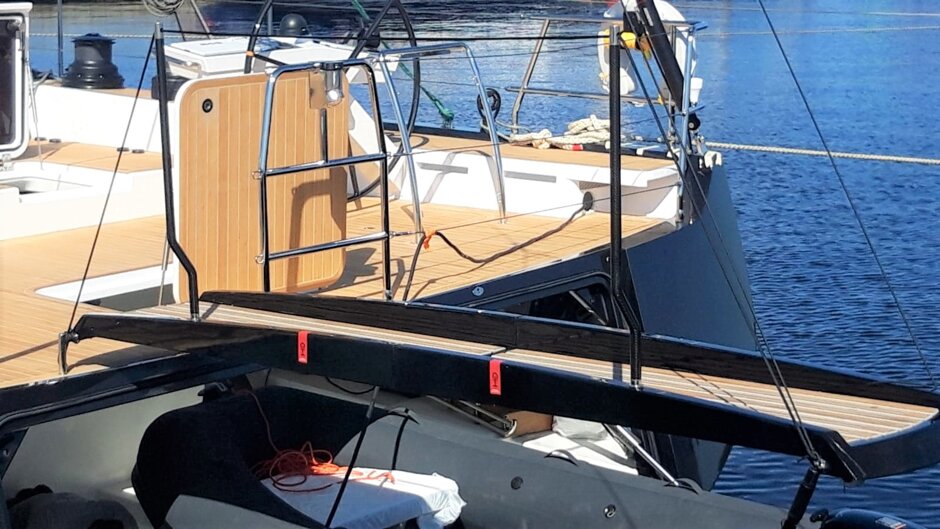

Removable gangway  D1.3 is designed to maximize both its strength and comfort .
Many test and FEA analysis have been developed so to obtain the best result.

The whole construction is carbon fibre and epoxy resin, consolidated in Autoclave and cured at high temperature (>90°).
Lower protection are made out of POM, while pins and deck socket are stainless steel AISI 316L.

Finishing may be C-LOOK, both clear or matt, or painted.
Transparent paint has ceramic features, so to maximize its hardeness, and it's provided with UV protection.

Standard solution include nr.2 removable carbon stanchions, "S" shape of D=30mm, provided with deck pin hook.
A soft rope life-line of D=8mm and black color links stanchion's head.
Rigid handrail or different solutions are available on demand.

The standard attachment is the "bridge solution", that is with two deck sockets that guarantees a very high stability and don't need the side vent.
Available  the "slewing solution" that has a single deck socket.
