D3 - HYDRAULIC GANGWAY
D3. SLIDING GANGWAY - TECH SPECIFICATION relB.pdf

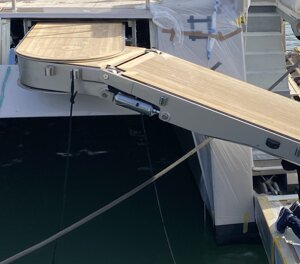

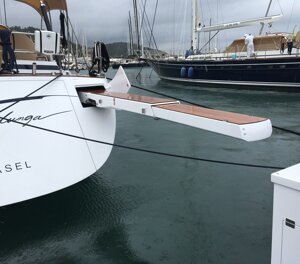

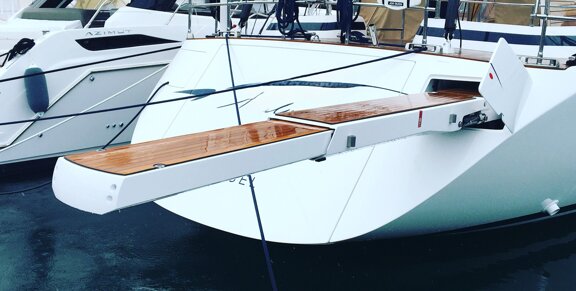

D3 is a FULL CARBON HYDRAULIC GANGWAY that my reach up to 7m length.
Its dimensions are fully custom and they start from the available room for the housing box.
Gangway may be provided with:
- 1 or 2 telescopic elements
- slewing platform
- capsizing movement.
CONSTRUCTION:
The whole construction is carbon fibre and epoxy resin, consolidated in Autoclave and cured at high temperature (>90°).
Pins and bearing are stainless steel AISI 316L with shiny polished finishing, where visible.
FINISHING:
Finishing may be C-LOOK, both clear or matt, or painted.
Transparent paint has ceramic features, so to maximize its hardeness, and it's provided with UV protection.

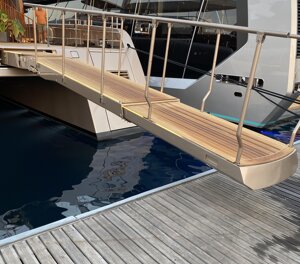

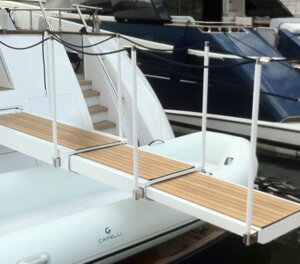

HANDRAIL:
Standard solution include nr.2 removable carbon stanchions, "S" shape of D=30mm, provided with deck pin hook.
A soft rope life-line of D=8mm and black color links stanchion's head.
Rigid handrail or different solutions are available on demand.
HOUSING BOX:
Housing box is aluminum CNC machined with black anodized finishing.
Door hatch, where requested, will be be linked to gangway moovement and it will be mechanic or hydraulic operated.
