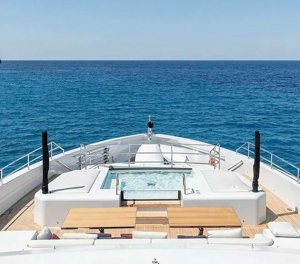

SUN AWNING POLES
Carbon made awning poles, MAXIMUM SHADE, MINIMUM WEIGHT
AW.30 Carbon made poles of 30mm external diameter, designed to withstand a transverse load of 20Kg.
Standard length available = 75cm / 150cm / 180cm.

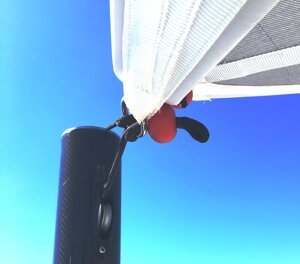

Top fairlead to be used with the holding line and/or to fix awning fabric ring.
Optional available:
- split system by the clip
- vertical deck socket with the twisting carbon cap
- 6° heeled deck socket with the twisting carbon cap
- side mounting socket with a full carbon construction.
AW.d30 rel.A.pdf
AW.50 Carbon made poles of 47mm external diameter , designed to withstand a transverse load of 65Kg.
Standard length available = 80cm / 160cm / 200cm.
Top plate, stainless steel AISI 316, is the fairlead of the 6mm holding line provided with internal tackle and composite V-Cleat.
Optional available:
- Split system by clip
- vertical deck socket with the twisting carbon cap
- side mounting socket with a full carbon construction.
AW.d50 - relA.pdf
AW.65 Carbon made poles of 65mm external diameter , designed to withstand a transverse load of 120Kg.
Standard length available = 100cm / 150cm / 180cm / 210cm.

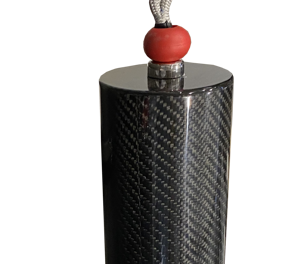

Pole head is made out of carbon and it's provided with a stainless steel AISI 316 fairlead.

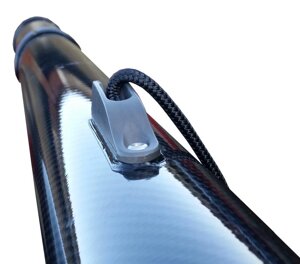

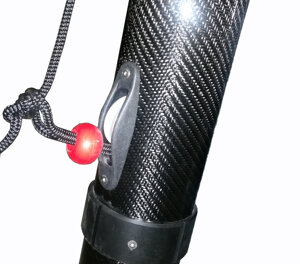

The 6mm holding line has an internal tackle and composite V-Cleat.
Optional available:
- Second line

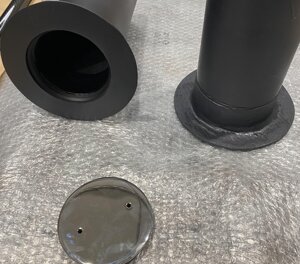

- deck socket , GRP made, provided with the removable carbon cap

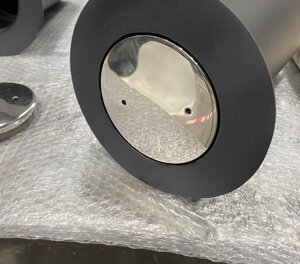

- side mounting system with a steel socket and a carbon flange to be bolted on yacht side.
AW.d65 - relA.pdf
AW.90 Carbon made poles of 90mm external diameter , designed to withstand a transverse load of 200Kg.
Standard length available = 140cm / 170cm / 200cm / 230cm.
Pole head is made out of carbon and it's provided with a stainless steel AISI 316 fairlead.

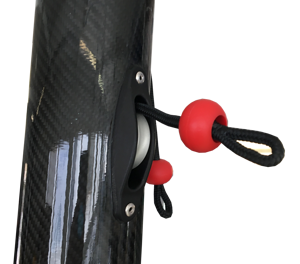

The 6mm holding line has an internal tackle of 3:1 reduction and composite V-Cleat.
Optional available:

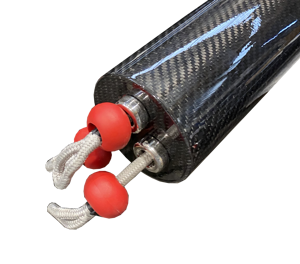

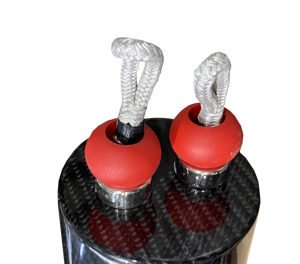

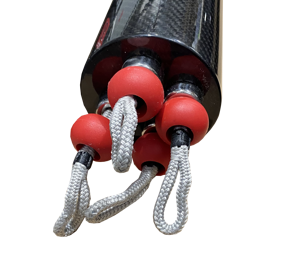

- 1, 2 or 3 additional lines, both on pole head and long its body.
- deck socket , GRP made, provided with the removable carbon cap
- side mounting system with a steel socket and a carbon flange to be bolted on yacht side.
AW.d90 - relA.pdf
