REMOVABLE BOARDING STAIR
Docking type

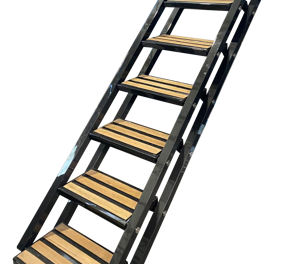

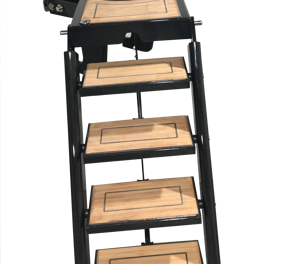

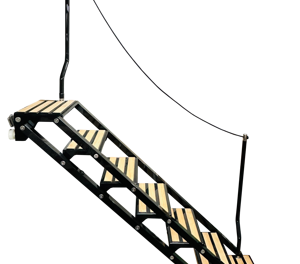

MODEL E2.0 - THE MIDRANGE LADDER
E2.0 is the ladder dedicated to yacht and megayacht.
It may have up to 7 steps of a standard dimension 420x220mm.
It has a full carbon construction, it may be provided with 2 or 4 stanchions with rope.
E2.0-800.01 Midrange Boarding stair.pdf

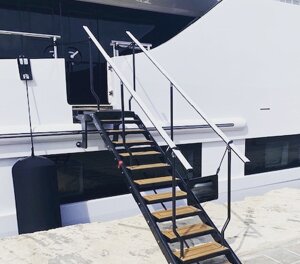

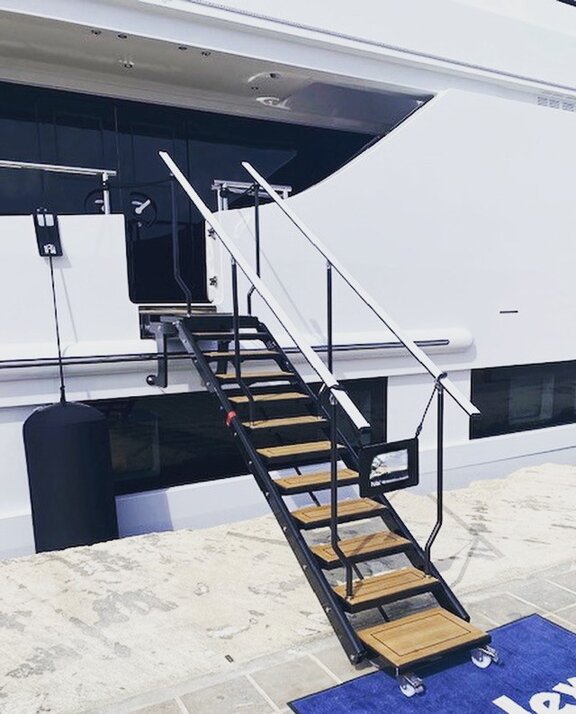

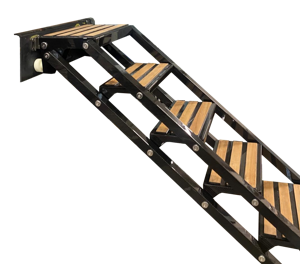

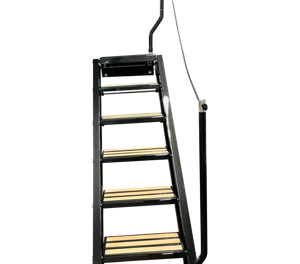

MODEL E2.1 - THE SUPERYACHTLADDER
Boarding Stair , Docking Tyoe - TECH SPECIFICATION relD.pdf
E2.1 is a full customizable ladder dedicated to superyacht

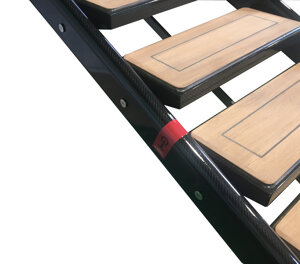

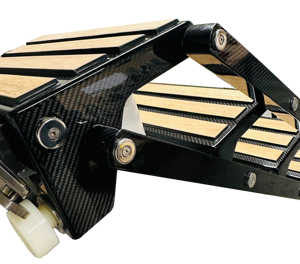

CONSTRUCTION:
The whole construction is carbon fibre and epoxy resin, consolidated in Autoclave and cured at high temperature (>90°).
Hull protection has been made by stainless steel adjustable foot coated by a white Nylon disc.
Pins, bushing and flanges are made out of stainless steel AISI 316L.
FINISHING:
Finishing may be C-LOOK, both clear or matt, or painted.
Transparent paint has ceramic features, so to maximize its hardeness, and it's provided with UV protection.
Lower face of steps and platform are mat painted, of the same color of the rest of the structure, without any fairing.
Stainless steel fittings are shiny polished where visible.

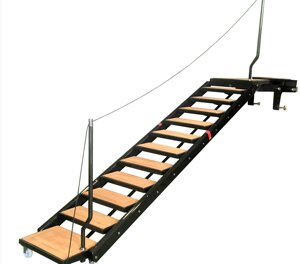

HANDRAIL:
Standard solution include nr.2 removable carbon stanchions, "S" shape of D=30mm, provided with deck pin hook.
A soft rope life-line of D=8mm and black color links stanchion's head.

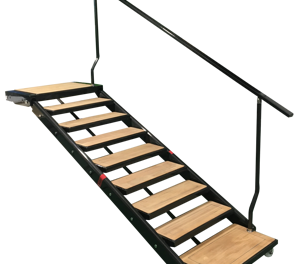

Rigid handrail or different solutions are available on demand.
YACHT ATTACHMENT:
Stadard connection is made with two sliding flanges stainless steel made.
A removable carter will be provided on request.
The carter, made of carbon fibre, will be shaped on hull side and it will protect the hull providing all needed fitting for ladder connection.
Carter will be fasten to yacht's gate by 2 threaded pins.
